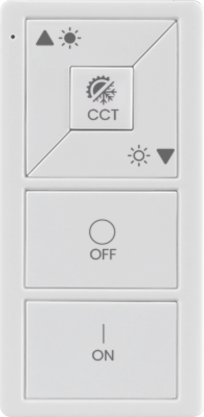

Carton V

Wireless 5 Button Remote

Elevate your Lighting Experience with the Convenience of Remote Control

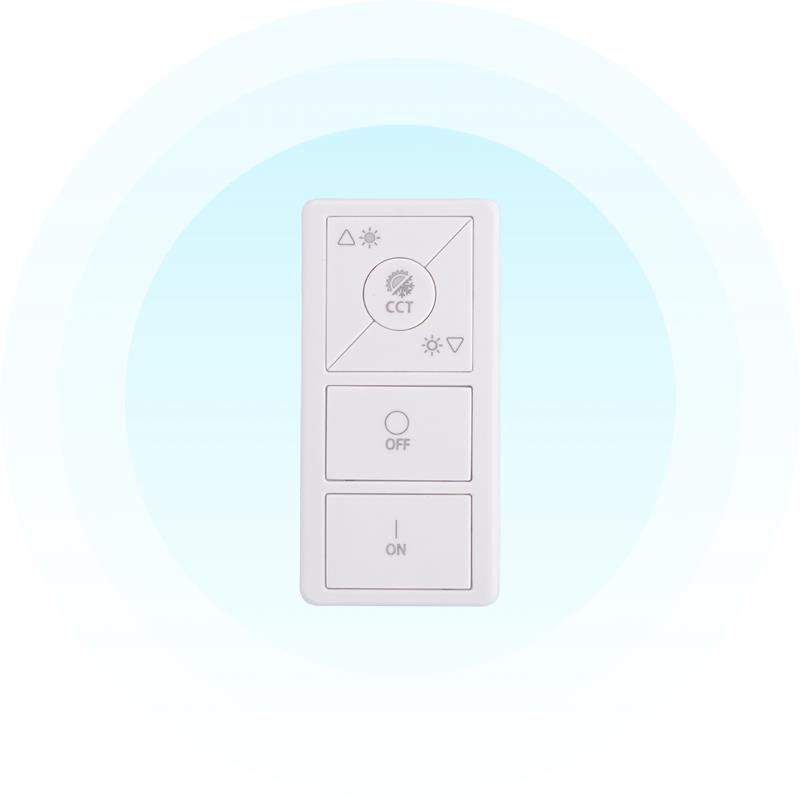

Catron V is a battery-powered switch that controls ON/OFF, intensity, and Correlated Color Temperature of an individual or group of luminaires. This five-button switch device operates on a 3V coin cell battery and is designed for maximum longevity.

Need more Information?

Use it as You Like it

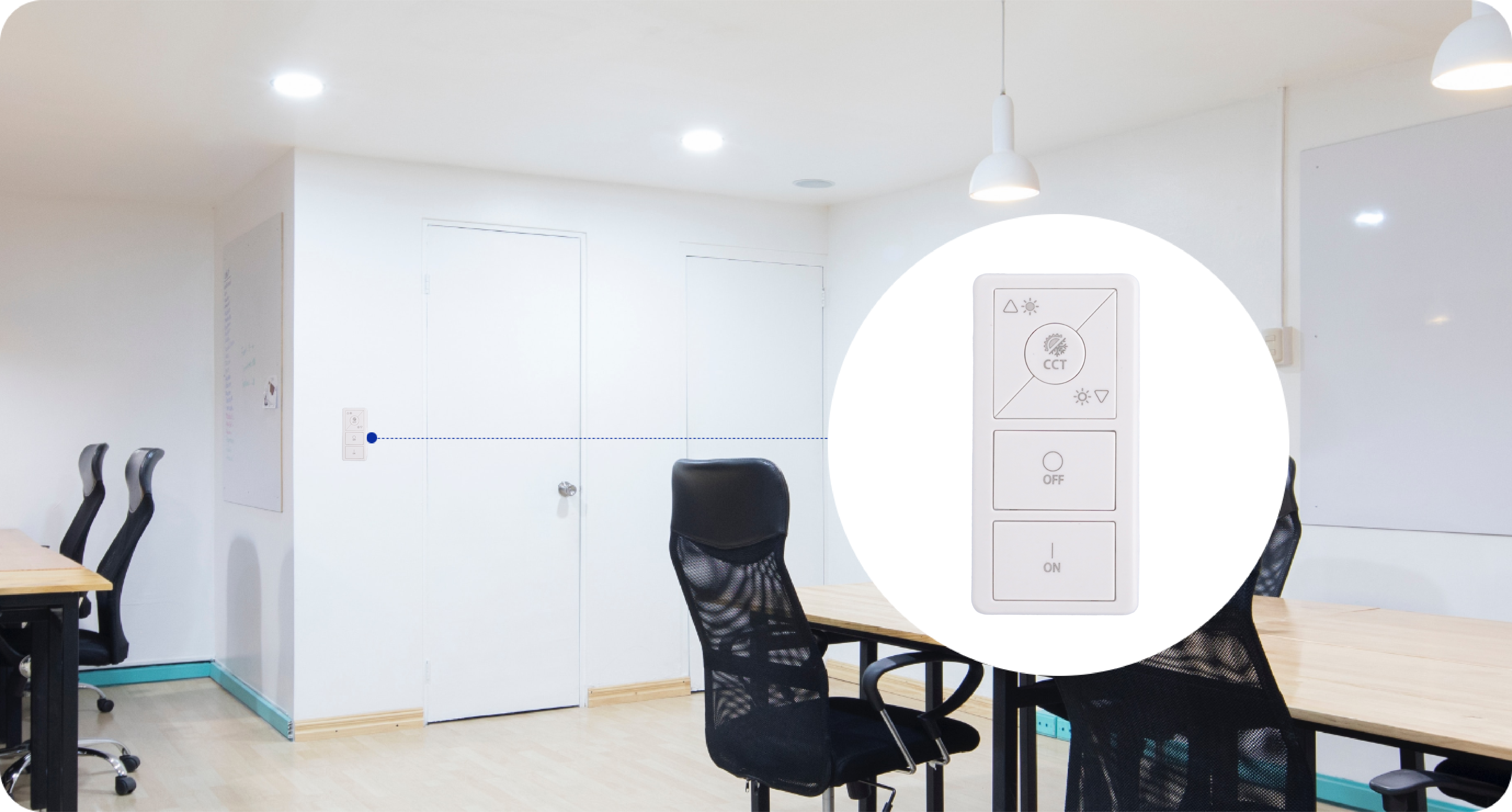

You have the option to use it either as a wall-mount switch or a wireless remote. The result is complete flexibility and freedom to control your lights the way you want.

Limitless Lighting
Control Possibilities

No longer fumble with multiple switches. Easily adjust brightness and color temperature individually or in groups.

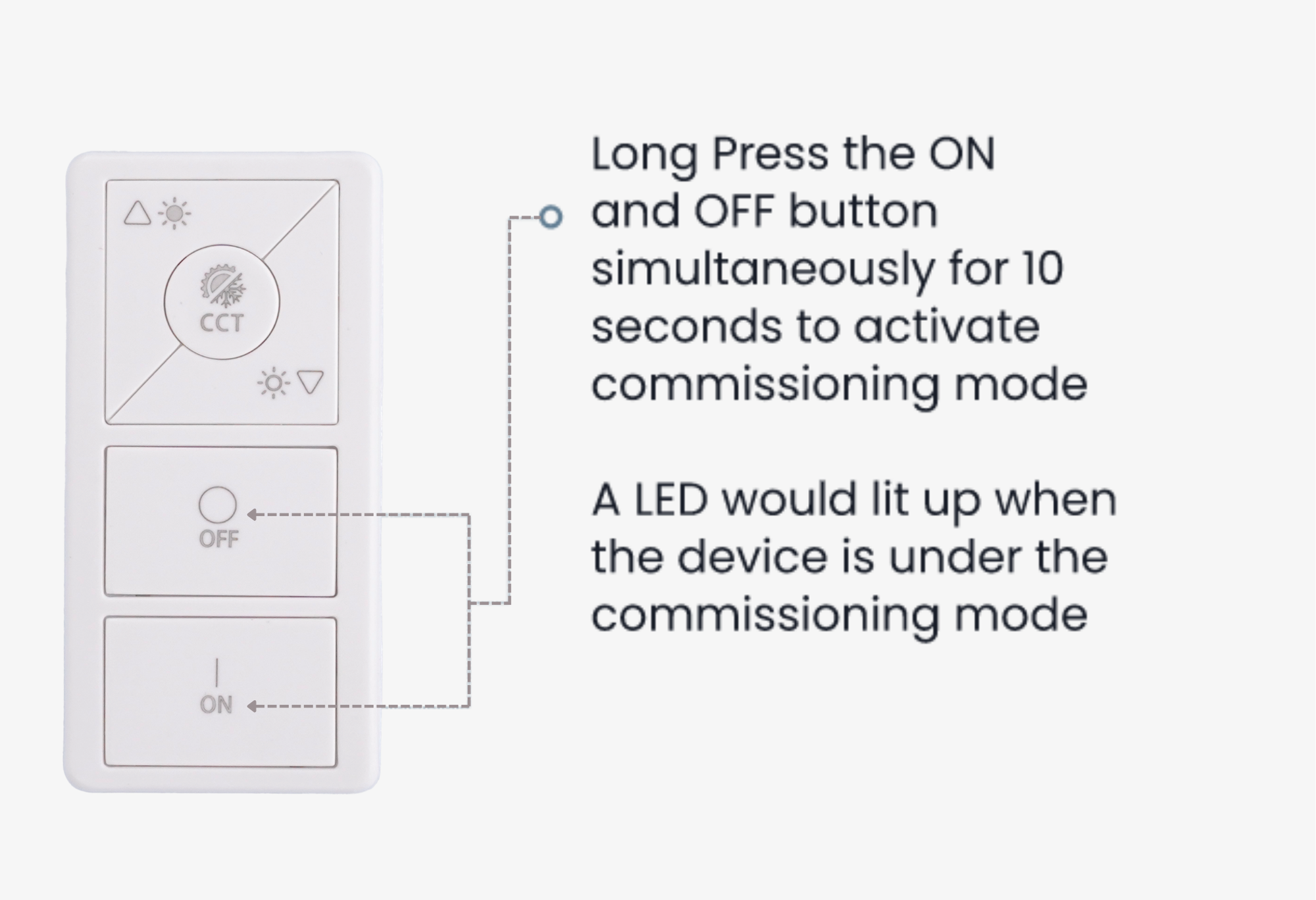

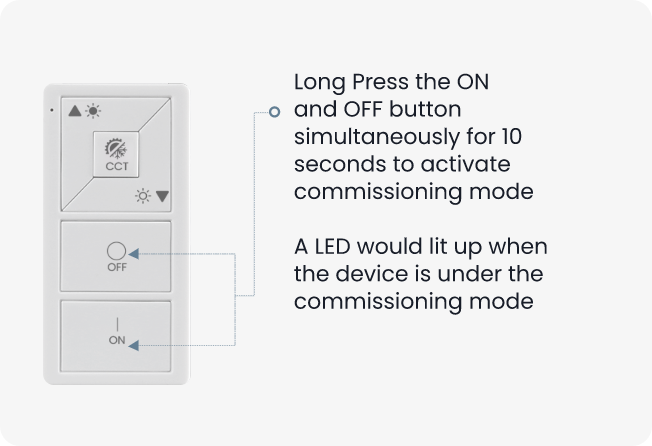

Commissioning

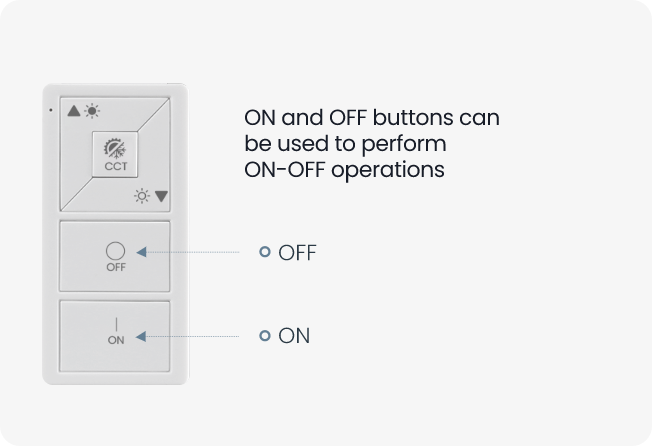

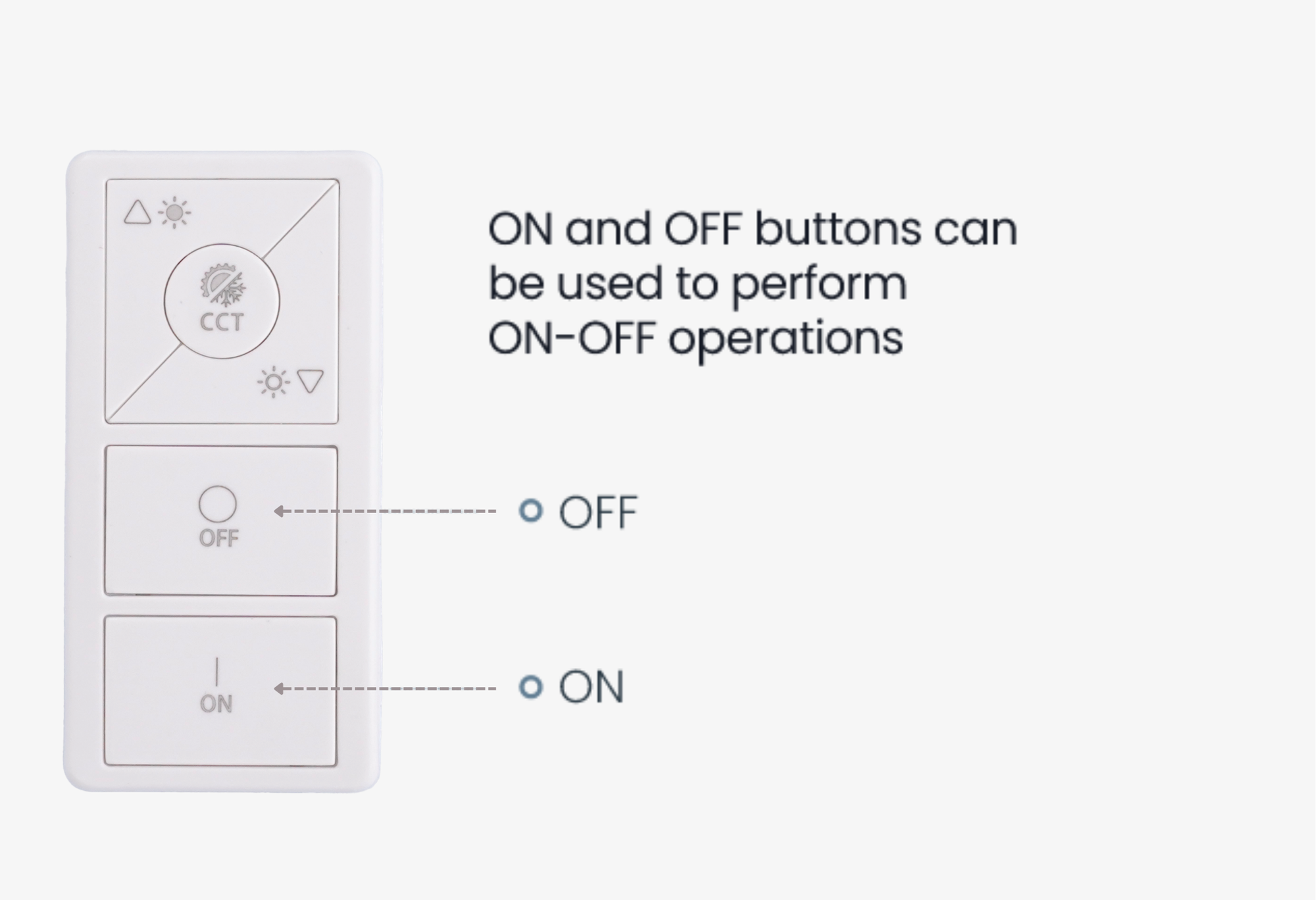

ON/OFF Operation

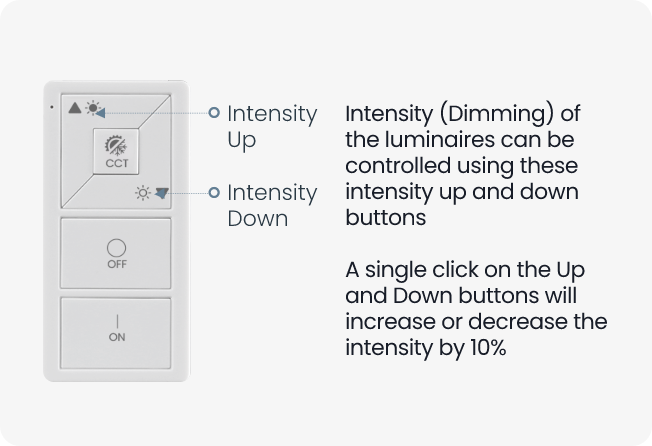

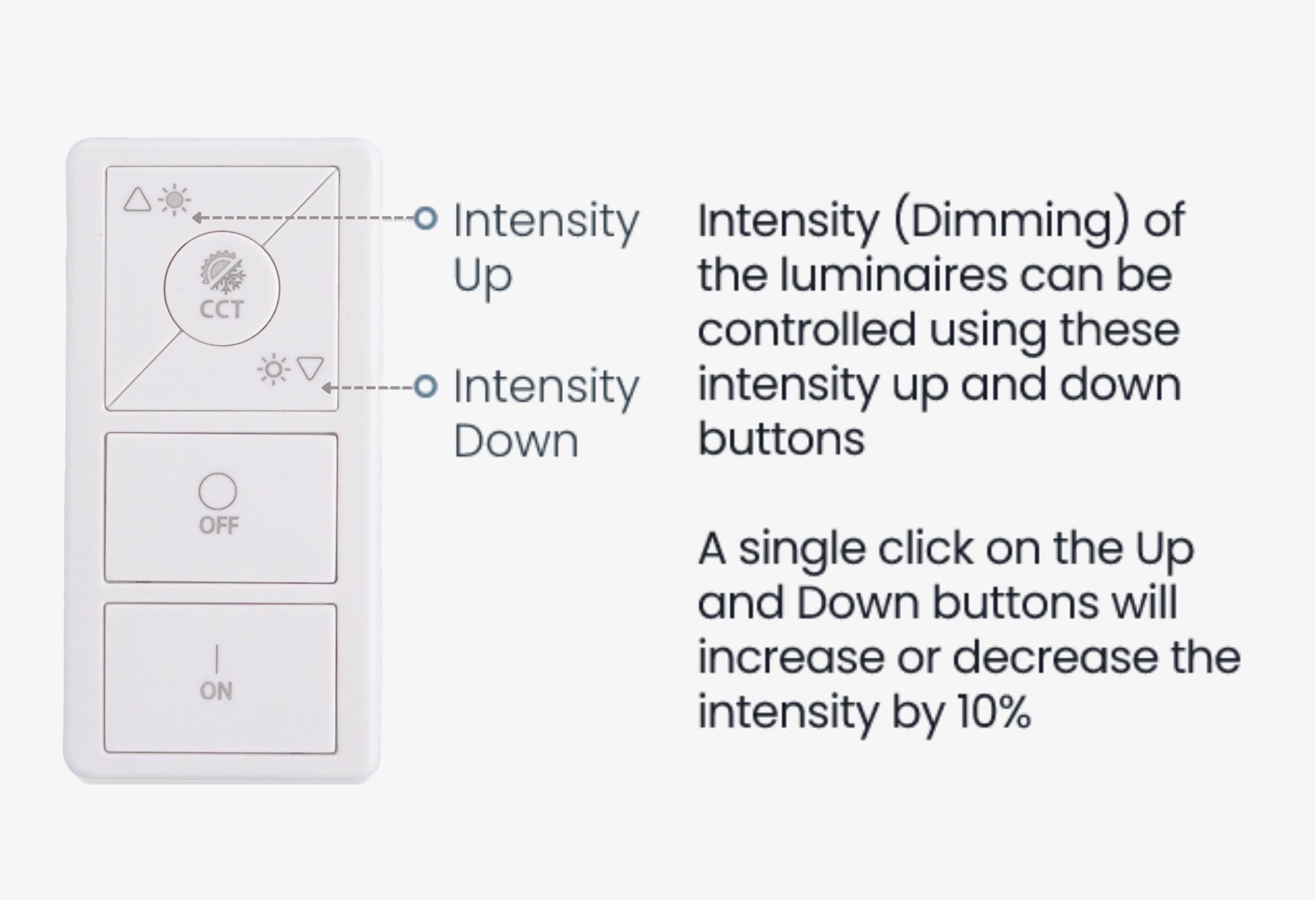

Intensity Operation

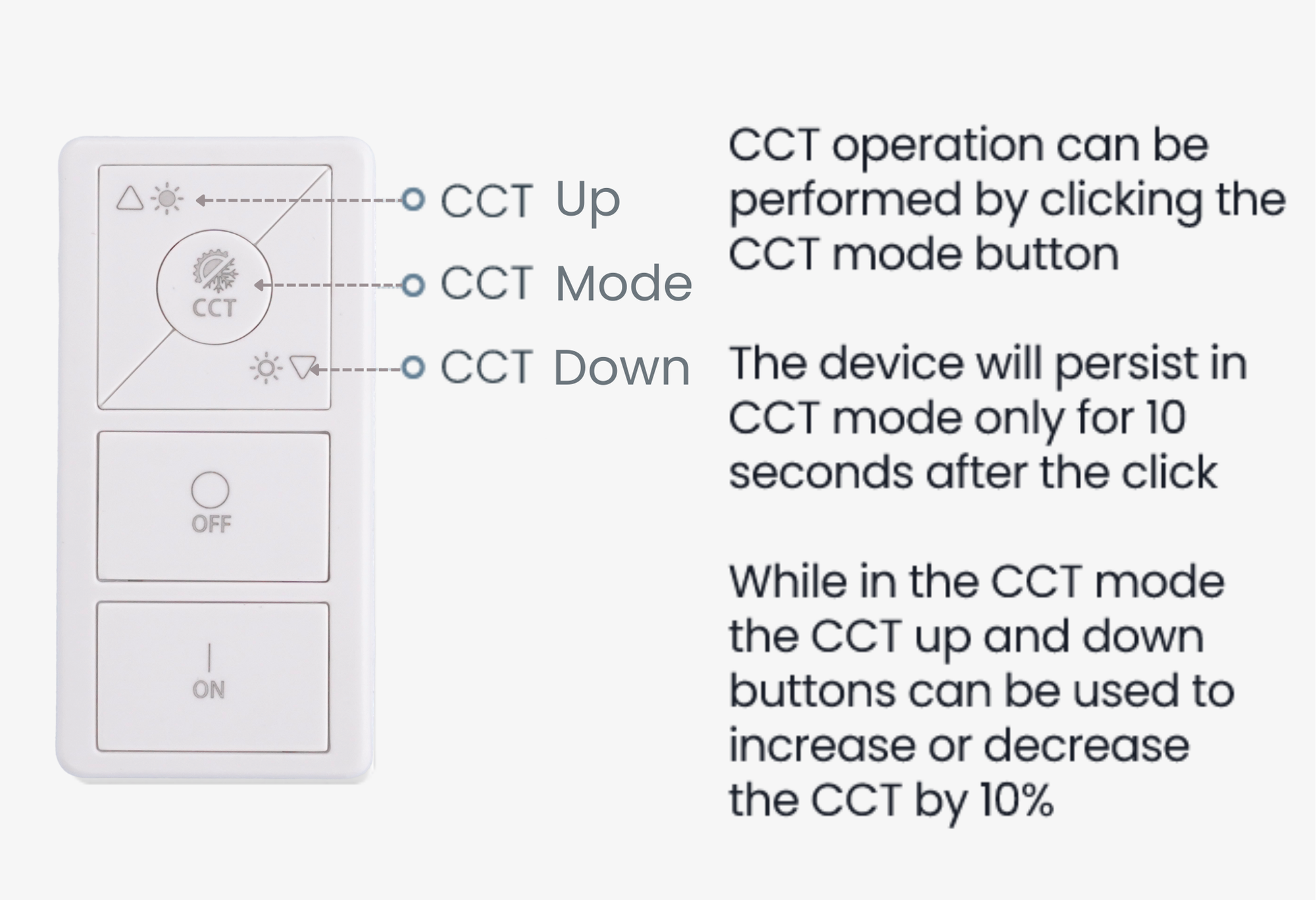

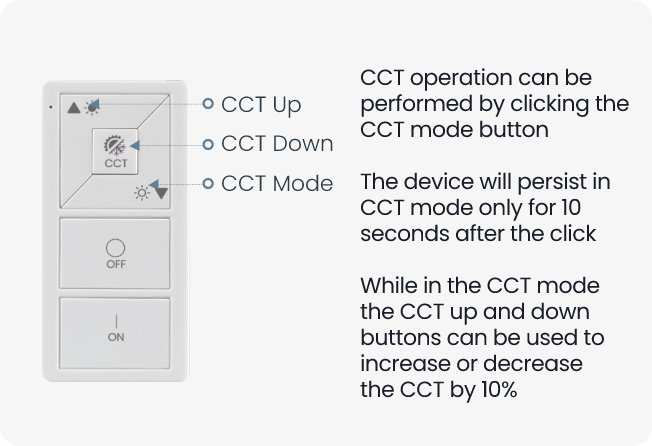

Intensity Operation

Spend Less
on Maintenance

Our low-maintenance device with up to 6-year battery life ensures durability and reliability.

Additional
Features

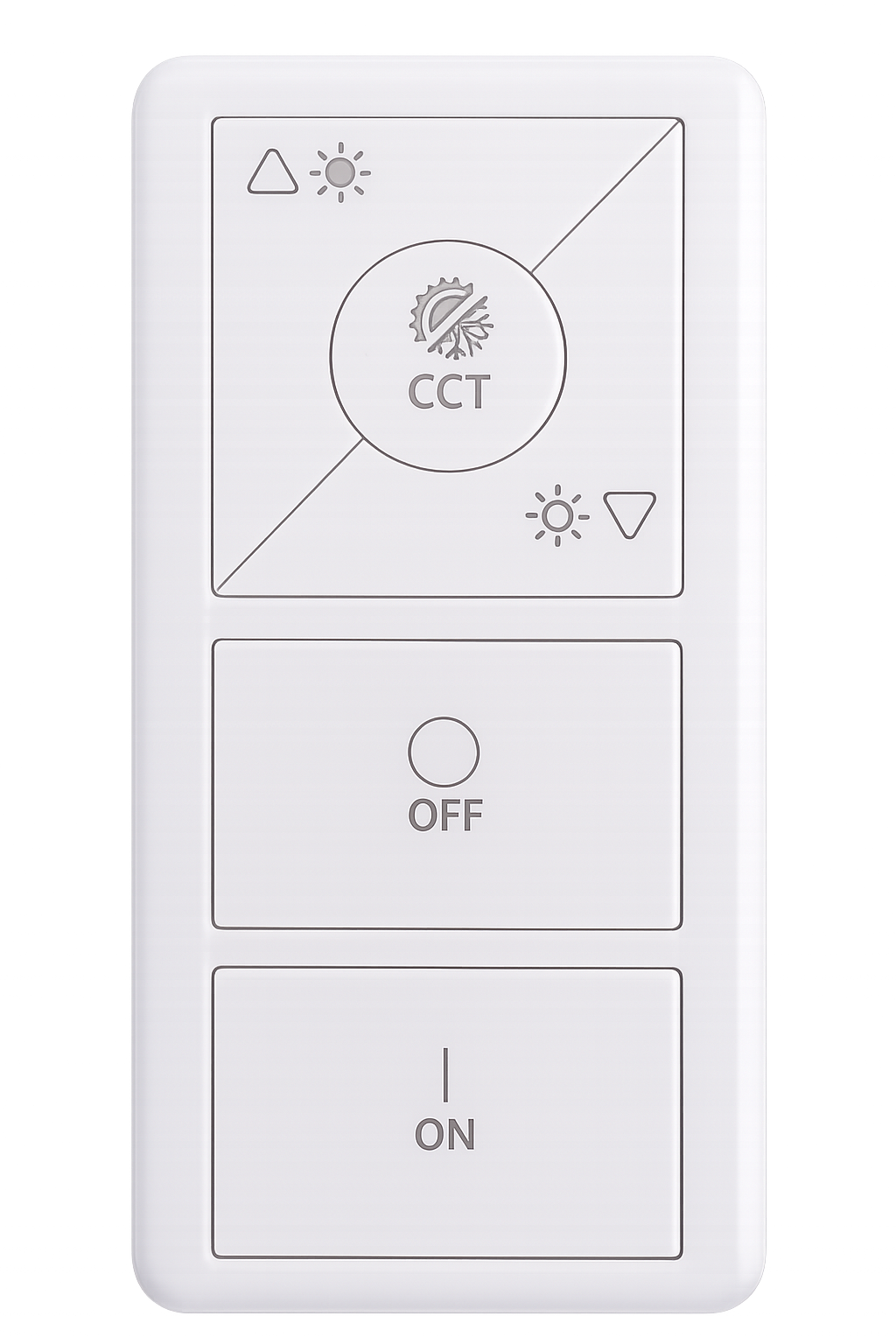

Carton V
  • Input voltage 3VDC
  • Frequency range 2402-2480 MHz
  • Ambient temperature 0 to 50°C (32 to 122°F)
  • Storage temperature -10 to 60°C (14 to 140°F )
  • Frequency range 2402-2480 MHz
  • Max output power 7 dBm
  • Ambient temperature 0 to 50°C (32 to 122°F)
  • Storage temperature -10 to 60°C (14 to 140°F )
  • Dimension
    2.59 X 1.25 X 0.35in (66 X 32 X 9mm)
    (Dimensions of only remote)
  • 4.13 X 1.57 X 0.47in
    (105 X 40 X 12mm)
    (Dimensions of the remote with wall bracket)
  • Weight 30g(1.05oz)
Carton V
  • Custom configurations
  • Controls ON/OFF, intensity, and CCT of an individual or a group of luminaires.
  • Always get the latest features and improvements using OTA updates for devices

Ideal for
Indoor Space Such as

School
Hospitality
Retail
Office

Want a live
experience?

Get to know Carton V in detail by talking to our lighting experts. Get a personalized demo session to get all your queries answered.
